Console View

Quick access to advanced functions

Keep track of probes in the current system

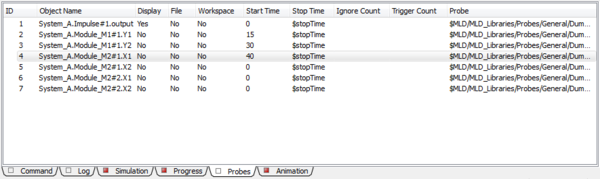

To keep track of probes, a panel was added to the Console View which lists all probes in the current system. A single click on an entry focuses the Model Editor on the selected probe. The Probes panel also gives you the means to remove a single probe or all probes together. To remove a specific probe, right-click on the appropriate entry in the list and choose Remove. To remove all probes in the system, right-click on any list entry and choose Remove All.

Monitor FSM states

It is now possible to monitor the current state of all FSMs in the current system. Turn on FSM States in the Modeling toolbar to activate the FSM States panel. The panel lists the FSMs of the current system on the left, with their current state on the right.

Open separate PTcl shells

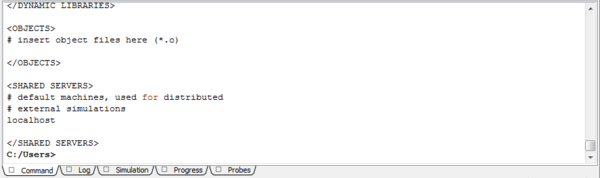

It's now possible to open several independent PTcl shells to access the built-in PTcl interpreter. To issue a new PTcl Shell panel right-click on the background of a shell type panel (Command, Simulation or PTcl Shell panel) and choose New PTcl Shell.

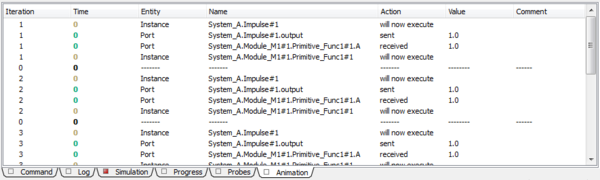

Text output of simulation in Simulation panel

With simulations running detached from the main MLDesigner process, any output generated by a simulation is forwarded to the Simulation panel instead of the Command panel.

Expand or collapse all log entries

For quick navigation in the Log panel, options to Expand All and to Collapse All log entries were added to the context menu.
