EOS Power Analysis

The SatLab graph below analyzes the power output of an Earth Observation Satellite under maximum solar gain. The script that generated this graph is shown below.

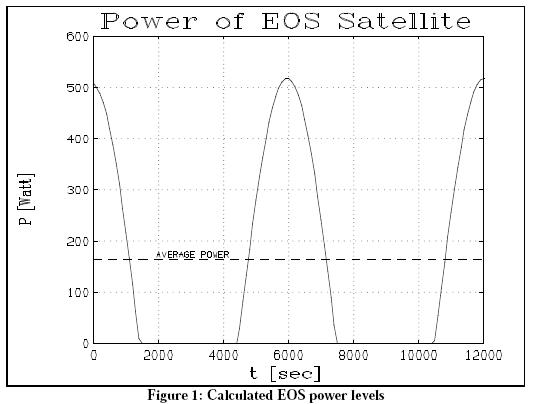

Figure 1: Calculated EOS power levels
Script - EOS satellite
  1. % Demo: EOS satellite
  2. %
  3. % This demo sets up a satellite for earth observation that passes
  4. % over the earth at noon for optimum light conditions
  5. %
  6.
  7. removeAll;
  8. clearGraphic();
  9. setSimEpoch(2000,3,21,12,0,0);
  10. addEpoch('equinox',2000,3,21,12,0,0);
  11. addSatellite('EOS Sat',7171,0,98,0,0,0,'equinox');
  12.
  13. %earthstation
  14. earth0 = "Frankfurt";
  15. addStation('Frankfurt', I_earth, 10, 50.05, 8.4, 0.1);
  16.
  17. dtime      = 100;
  18. alphaleft  = 45 *d2r;
  19. alphatop   = 0 *d2r;
  20. alpharight =-45 *d2r;
  21.
  22. setSimTime(0);
  23. setSimStepSize(dtime);
  24. t = 0:dtime:120*dtime;
  25. fleft = rotx(alphaleft) * [0
  26.                             0
  27.                            -1];
  28.
  29. ftop = rotx(alphatop)*    [0
  30.                             0
  31.                            -1];
  32.
  33. fright= rotx(alpharight)* [0
  34.                             0
  35.                            -1];
  36.
  37. z_matrix =
  38. [   026.7527.2527.7528.2528.7529.2529.7530.2530.7531.25
  39.   10012.3912.2312.1412.1411.9510.6410.5110.3310.14  9.94
  40.    9012.6712.5912.5012.3912.2611.7611.6811.3611.4811.36
  41.    8012.7712.7312.6812.6312.5712.3112.2712.2212.1712.11
  42.    7012.7812.7612.7412.7112.6812.5512.5312.5112.4812.45
  43.    6012.7412.7312.7212.7112.6912.6312.6212.6112.6012.68
  44.    5012.6812.6812.6712.6712.6612.6312.6312.6212.6212.91
  45.    4012.6112.6112.6112.6112.6012.5912.5912.7912.8813.18
  46.    3012.5312.5312.5312.5312.5312.5312.5712.6312.7312.72
  47.    2012.4612.4512.4512.4512.4512.4512.4512.4512.6512.45
  48.    1012.3812.3812.3812.3812.3812.3812.3812.3812.5812.38
  49.     012.3012.3012.3012.3012.3012.3012.3012.3012.4012.30
  50.   -1012.2212.2212.2212.2212.2212.2212.2212.2212.2212.22
  51.   -2012.1412.1412.1412.1412.1412.1412.1412.1412.1412.14
  52.   -3012.0612.0612.0612.0612.0612.0612.0612.0612.0612.06
  53.   -4011.9811.9811.9811.9811.9811.9811.9811.9811.9811.98
  54.   -5011.7011.8411.9011.9011.9011.9011.9011.9011.9011.90
  55.   -6011.3211.6211.7211.8211.8211.8211.8211.8211.8211.82
  56.   -7011.1411.2411.4411.6411.7411.7411.7411.7411.7411.74
  57.   -8010.9510.9511.3511.4511.6511.6511.6511.6511.6511.65];
  58.
  59. j            = 0;
  60. temptop      = 0;
  61. templeft     = 0;
  62. tempright    = 0;
  63. solarflux    = 1420;
  64.
  65. alpha        = 0.65;
  66. epsilon      = 0.81;
  67. albedo       = 0.3;
  68. sigma        = 5.67e-8;
  69. capacity     = 660;
  70.
  71. qir          = 0;
  72. strings_top  = 4;
  73. strings_side = 10;
  74. eview        = 0.045;
  75. dt           = 60;
  76.
  77. dtc          = dt/capacity;
  78. reference_flux_si = 1353;
  79. voltage      = 28;
  80. current      = zeros(size(t));
  81.
  82. for i=t,j=j+1;
  83.     stepSim;
  84.     [d,r,a,e,v] = PlanetPosition();
  85.     theta = ftop` * unitvector(a(2),e(2));
  86.     theta = max(0,theta);
  87.     temptop = temptop+((theta*solarflux*alpha)
  88.                       -(epsilon*(temptop^4)*sigma))*(dtc);
  89.     current_top = ((strings_top*theta)
  90.                    *table(z_matrix,(temptop-273.15),voltage)
  91.                    *((solarflux/reference_flux_si)/12));
  92.
  93.     theta = fleft` * unitvector(a(2),e(2));
  94.     theta = max(0,theta);
  95.     templeft = (templeft+
  96.                ((((theta*solarflux*alpha)+
  97.                   (theta*solarflux*albedo*alpha*eview))
  98.                 -(epsilon*(templeft^4)*sigma)
  99.                 +theta*qir)*(dtc)));
  100.
  101.     current_left = ((strings_side*theta)*
  102.     table(z_matrix,(templeft-273.15),voltage)
  103.         *((solarflux/reference_flux_si)/12));
  104.
  105.     theta = fright` * unitvector(a(2),e(2));
  106.     theta = max(0,theta);
  107.     tempright= (tempright+
  108.                ((((theta*solarflux*alpha)+
  109.                   (theta*solarflux*albedo*alpha*eview))
  110.                 -(epsilon*(tempright^4)*sigma)+theta*qir)*(dtc)));
  111.
  112.     current_right = ((strings_side*theta)
  113.                     *table(z_matrix,(tempright-273.15),voltage)
  114.                     *((solarflux/reference_flux_si)/12));
  115.
  116.     current(j)=current_top+current_left+current_right;
  117. endfor
  118.
  119. average=sum(current*voltage)/prod(size(t));
  120. erase
  121.
  122. window('111');
  123. plot(t,current*voltage,
  124.      t,ones(size(t))*average, 'grid');
  125. title('Power of EOS Satellite')
  126. ylabel('P [Watt]');
  127. xlabel('t [sec]')
  128. wtext(2000,average+10,'Average Power');
